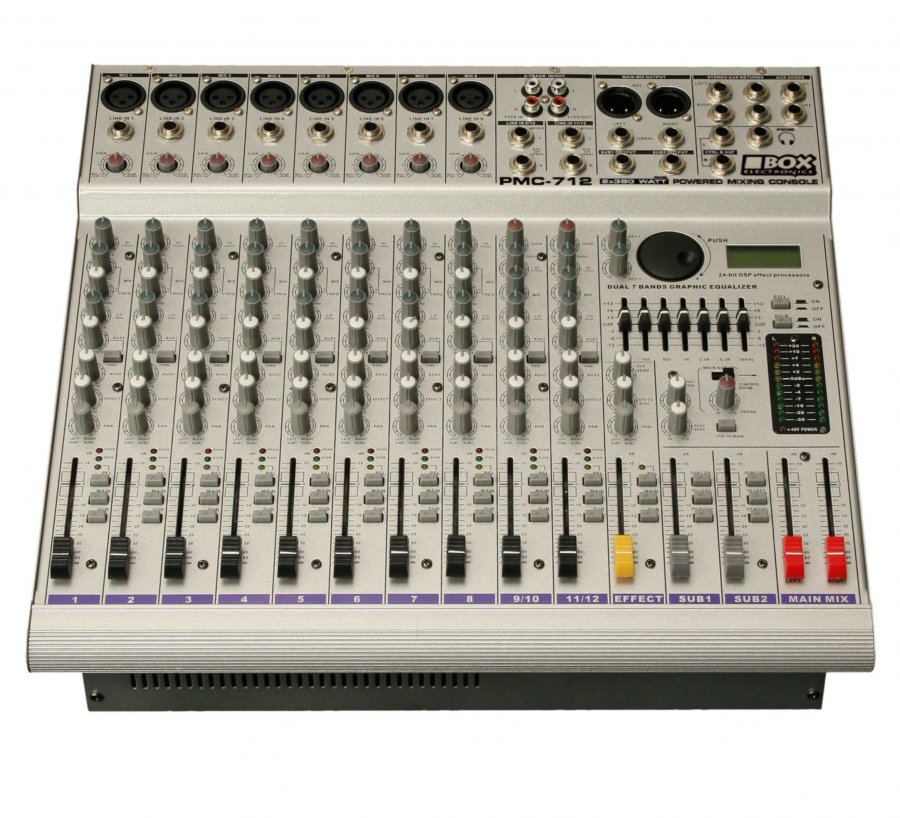

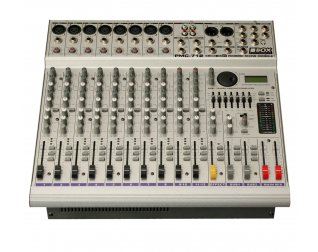

PMC-712

2x380W 8-channels mono, 2-channels stereo, 2-subgroups, DSP 24bit effects processor, Graphic equalizer, PA signal selector.


  • Ultra low-noise ULN desing, highest posssible headroom,ultra-tranparent audio;
  • Ultra-wide 60db gain range;
  • Lowest possible distortion 0.0007%(20HZ-20KHZ);
  • Intergrated 24 bit digital stereo DSP processor with 32 Preset including reverb,delay,chorus,tube distortion,channel for esay to use along applications;
  • 7 band stereo graphic EQ allow precise frequency correction of monitor or mian mixer;
  • 2 fully equipped sero input channels,3 band EQ AND MID Frequency control;
  • Inserts on each MONO channel for flexible connection of outboard equipment high-headroom line input;
  • 3 Aux send per channel:1 pre/post fader for monitoring,1 post fader for external send,1 post fader for DSP processor;
  • Clip indication and gain level set LED plus mute switches for each channel allow fast and accurte level setting;
  • Two sub buses and output direct or mix to main buses;
  • 2 multi-functional setero aux returns;
  • Balanced main mix output with gold-plated XLR Connectors,headphone/control room output and stereo tape outputs;
  • Extremely rugged steel construction ensures long life even under most demanding conitions;
  • Switchable +48V phantom power for condenser microphone;
  • Long-wearing 60 mm logarithmic-taper faders and sealed rotary controls;
  • Response plus lowest possible power sonsumption for energy saving;
  • Rack mount brackets supply service available;
  • Revolutionary coolaudio amplifier technology; enormouse power,incredible sonic performance and super-lingt weight SMT technics;
